Architectural Kata Agile Dead Trees Solution By GPT-4o

Machine Learning, Software Architecture

One year later the experiment about creating a solution for the Architectural Kata Agile Dead Trees using chatGpt that you can find here

I asked the same questions to GPT-4o and the results are quite impressive. At the end of the article I’m explicitly asking to create the software architecture taking into account microservices architecture design patterns, guess how it went :D

This article was featured also on the Dear Architects Mailing list #191

You:

enhance the following software requirement with more details:

Summary: A publisher wants to unify its authoring CMS and customer store experience

Users: dozens of publisher employees, hundreds of authors, thousands/millions of customers

Requirements: authors publish chapters; reviewers see the chapters, make review comments, and notify authors on review; authors can reject proposed review changes; Customers can buy books (either e- form or dead trees form) online, including those available in “beta”; publisher can push authors’ chapters to those customers who bought the “beta”

ChatGPT:

Certainly! Here’s an enhanced version of the software requirement with additional details to provide a more comprehensive understanding:

Project Overview:

Summary:

The project aims to integrate and streamline the publisher’s existing Content Management System (CMS) used by authors for content creation and the customer-facing online store. The goal is to provide a seamless experience for authors to publish content, reviewers to provide feedback, and customers to purchase and receive both finalized and “beta” (work-in-progress) versions of books.

Objectives:

  1. Unify CMS and Storefront: Combine the functionalities of content authoring and customer transactions into a single platform.
  2. Improve Collaboration: Enhance the interaction between authors, reviewers, and customers.
  3. Increase Customer Engagement: Offer customers early access to books in progress (beta versions) and a variety of purchase options.

Users:

  • Publisher Employees: Dozens, including editors, sales, and marketing staff.
  • Authors: Hundreds, ranging from independent writers to established professionals.
  • Customers: Thousands to millions, encompassing a broad range of book readers and enthusiasts.

Detailed Requirements:

Authoring and Publishing:

  1. Content Creation and Management:

    • Authors can create, edit, and manage chapters and entire books within the CMS.
    • Support for various content formats including text, images, and multimedia.
    • Version control for tracking changes and revisions over time.

  2. Publishing Workflow:

    • Authors can publish chapters or entire books either publicly or to specific audiences (e.g., beta readers).
    • Option to set different publishing statuses: draft, review, beta, and final.
    • Integration with the online store for automatic listing upon publication.

  3. Beta Publishing:

    • Ability for authors to publish books as “beta” versions, available for purchase or subscription by customers.
    • Customers who purchase beta versions automatically receive updates as new chapters or revisions are released.

Review and Feedback:

  1. Review Process:

    • Designated reviewers can access chapters in the review phase.
    • Reviewers can make inline comments, suggest changes, and provide overall feedback on chapters.
    • Reviewers can notify authors upon completion of their review.

  2. Author Response:

    • Authors can view, respond to, and reject or accept review comments and suggested changes.
    • Authors receive notifications when reviews are submitted and have the ability to mark comments as resolved or flag them for further discussion.

  3. Collaboration Tools:

    • Support for real-time collaboration and chat between authors and reviewers.
    • Document history and audit trail for all interactions and changes.

Customer Store Experience:

  1. Product Listings and Purchase Options:

    • Customers can browse and purchase books in different formats (e-book, print).
    • Detailed product pages with book descriptions, author information, sample chapters, and reviews.
    • Options to purchase beta versions of books and receive updates as new content is published.

  2. Transaction and Delivery:

    • Secure and efficient payment processing.
    • Integration with physical distribution services for print books.
    • Immediate access to digital content upon purchase, with options for downloading or reading online.

  3. Customer Account Management:

    • Customers can create and manage accounts, view purchase history, and track orders.
    • Notifications and updates for new releases, updates to beta books, and special offers.
    • Personalized recommendations based on purchase history and reading preferences.

Publisher Management Tools:

  1. Content Distribution:

    • Tools for publishers to manage the distribution of content to various platforms and customer segments.
    • Ability to push updates to beta versions and notify customers.

  2. Analytics and Reporting:

    • Real-time analytics on sales, customer engagement, and content performance.
    • Detailed reporting capabilities to track author activity, review processes, and customer feedback.

  3. Security and Compliance:

    • Robust security measures to protect content, customer data, and transaction information.
    • Compliance with relevant regulations for digital content distribution and data protection.

Technical Specifications:

  1. Scalability:

    • The system must support growth in the number of users and content without performance degradation.
    • Efficient handling of large-scale data, especially for customers and digital content.

  2. Integration:

    • Seamless integration with existing systems for payment processing, print fulfillment, and third-party services.
    • API support for extending platform functionalities and integrating with other tools.

  3. User Experience:

    • Intuitive and user-friendly interfaces for all types of users (authors, reviewers, customers, and publisher employees).
    • Mobile-friendly design for both the CMS and the customer store.

Implementation and Support:

  1. Deployment:

    • Cloud-based deployment with options for on-premises installations for larger clients.
    • Regular updates and maintenance to ensure system reliability and feature enhancements.

  2. Support and Training:

    • Comprehensive support services for users, including documentation, tutorials, and helpdesk.
    • Training programs for authors, reviewers, and publisher employees to effectively use the system.

Success Metrics:

  • Increased efficiency in the authoring and review process.
  • Higher customer satisfaction and engagement with the beta program.
  • Growth in sales and revenue through the integrated platform.

This detailed outline should provide a comprehensive understanding of the project requirements and facilitate the planning and development process.

You:

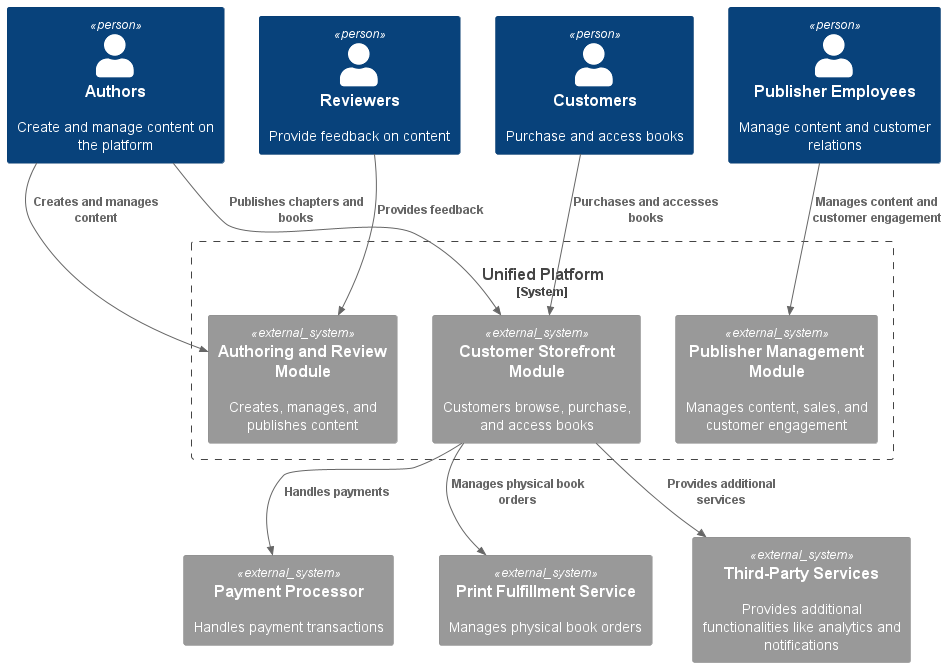

create a c4 context diagram of the requirement above using plantum notation

ChatGPT:

Certainly! To create a C4 context diagram using PlantUML notation, we will use the syntax provided by PlantUML for rendering C4 models.

Here’s how you can represent the context diagram for the Unified Authoring CMS and Customer Store in PlantUML:

context diagram

@startuml
!define C4Context
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml

' Define the System
System_Boundary(cms, "Unified Platform") {
    System_Ext(authoring, "Authoring and Review Module", "Creates, manages, and publishes content")
    System_Ext(storefront, "Customer Storefront Module", "Customers browse, purchase, and access books")
    System_Ext(management, "Publisher Management Module", "Manages content, sales, and customer engagement")
}

' Define People and Systems
Person(authors, "Authors", "Create and manage content on the platform")
Person(reviewers, "Reviewers", "Provide feedback on content")
Person(customers, "Customers", "Purchase and access books")
Person(employees, "Publisher Employees", "Manage content and customer relations")

System_Ext(paymentProcessor, "Payment Processor", "Handles payment transactions")
System_Ext(printFulfillment, "Print Fulfillment Service", "Manages physical book orders")
System_Ext(thirdParty, "Third-Party Services", "Provides additional functionalities like analytics and notifications")

' Define Relationships
Rel(authors, authoring, "Creates and manages content")
Rel(reviewers, authoring, "Provides feedback")
Rel(authors, storefront, "Publishes chapters and books")
Rel(customers, storefront, "Purchases and accesses books")
Rel(employees, management, "Manages content and customer engagement")
Rel(storefront, paymentProcessor, "Handles payments")
Rel(storefront, printFulfillment, "Manages physical book orders")
Rel(storefront, thirdParty, "Provides additional services")

' Layout and Positioning
' Adjust these to improve the diagram layout visually
Lay_R(authors, authoring)
Lay_R(reviewers, authoring)
Lay_R(customers, storefront)
Lay_R(employees, management)
Lay_R(paymentProcessor, storefront)
Lay_R(printFulfillment, storefront)
Lay_R(thirdParty, storefront)

@enduml

Explanation of the Diagram:

  1. System Boundary (cms): Represents the main system, the Unified Platform, which includes three core modules: Authoring and Review, Customer Storefront, and Publisher Management.

  2. Actors:

    • Authors: Interact with the Authoring and Review Module to create and manage content.
    • Reviewers: Provide feedback on content through the Authoring and Review Module.
    • Customers: Use the Customer Storefront Module to purchase and access books.
    • Publisher Employees: Use the Publisher Management Module to oversee content and customer engagement.

  3. External Systems:

    • Payment Processor: Handles payment transactions for the Customer Storefront.
    • Print Fulfillment Service: Manages the printing and shipping of physical books ordered through the Customer Storefront.
    • Third-Party Services: Provides additional services like analytics and notifications, interacting with the Unified Platform.

  4. Relationships:

    • Connections (Rel) indicate the interactions between the users and the modules, as well as the interactions between the platform and external systems.

  5. Layout Directives (Lay_D): These optional directives help in arranging the elements in a visually coherent manner, aligning them logically within the diagram.

To visualize this diagram, you can copy the above PlantUML code into a PlantUML tool or online renderer like PlantText or PlantUML Editor.

This diagram provides a clear overview of the system’s context, highlighting the interactions between the Unified Platform and its external entities.

You:

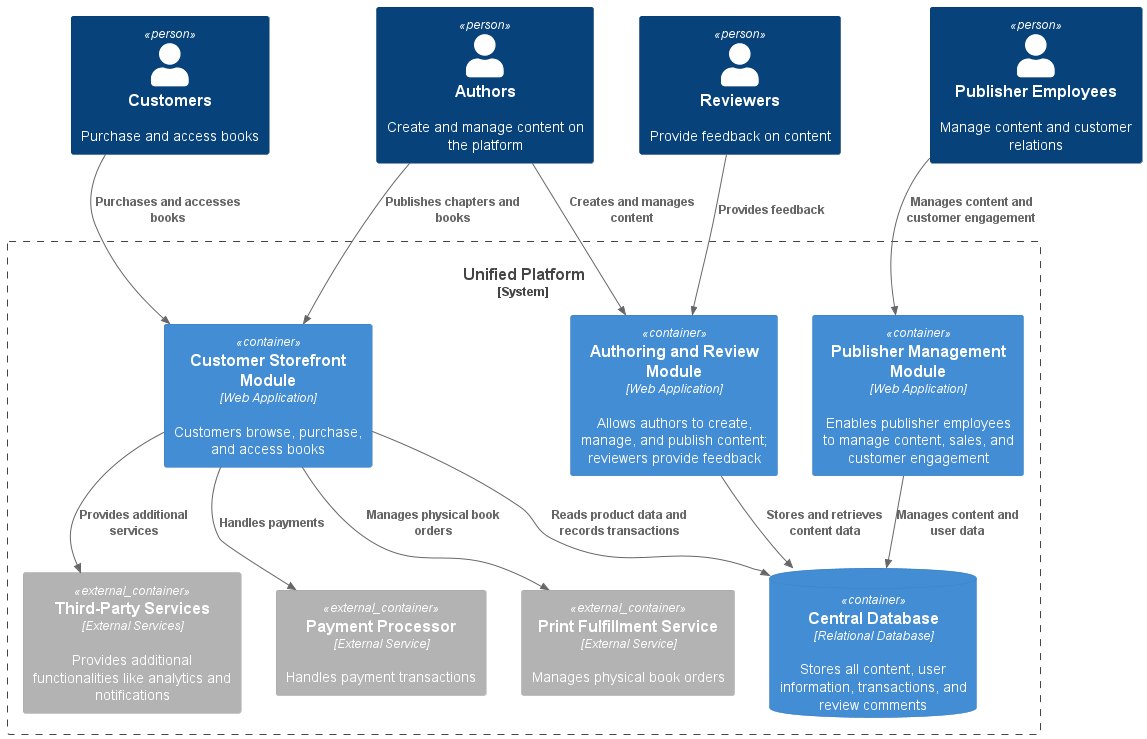

create a plantuml software container diagram using C4 notation of the previous context diagram

ChatGPT:

To create a software container diagram using C4 notation in PlantUML for the Unified Authoring CMS and Customer Store, we’ll break down the main system (the Unified Platform) into its key containers and show their interactions with external systems and users.

Software Container Diagram (C4 Level 2)

The software container diagram focuses on the major containers (applications or services) within the system and their interactions. For the Unified Platform, we will include the three main modules (Authoring and Review Module, Customer Storefront Module, Publisher Management Module) and show how they interact with each other and with external systems.

Here’s the PlantUML code to represent this:

context diagram

@startuml
!define C4Container
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

' Define the System Boundary
System_Boundary(cms, "Unified Platform") {
    ' Define Containers
    Container(authoring, "Authoring and Review Module", "Web Application", "Allows authors to create, manage, and publish content; reviewers provide feedback")
    Container(storefront, "Customer Storefront Module", "Web Application", "Customers browse, purchase, and access books")
    Container(management, "Publisher Management Module", "Web Application", "Enables publisher employees to manage content, sales, and customer engagement")

    ContainerDb(database, "Central Database", "Relational Database", "Stores all content, user information, transactions, and review comments")

    ' External Containers (for Integration)
    Container_Ext(paymentProcessor, "Payment Processor", "External Service", "Handles payment transactions")
    Container_Ext(printFulfillment, "Print Fulfillment Service", "External Service", "Manages physical book orders")
    Container_Ext(thirdParty, "Third-Party Services", "External Services", "Provides additional functionalities like analytics and notifications")
}

' Define People and External Systems
Person(authors, "Authors", "Create and manage content on the platform")
Person(reviewers, "Reviewers", "Provide feedback on content")
Person(customers, "Customers", "Purchase and access books")
Person(employees, "Publisher Employees", "Manage content and customer relations")

' Relationships with Users
Rel(authors, authoring, "Creates and manages content")
Rel(reviewers, authoring, "Provides feedback")
Rel(authors, storefront, "Publishes chapters and books")
Rel(customers, storefront, "Purchases and accesses books")
Rel(employees, management, "Manages content and customer engagement")

' Internal Relationships between Containers
Rel(authoring, database, "Stores and retrieves content data")
Rel(storefront, database, "Reads product data and records transactions")
Rel(management, database, "Manages content and user data")

' External System Interactions
Rel(storefront, paymentProcessor, "Handles payments")
Rel(storefront, printFulfillment, "Manages physical book orders")
Rel(storefront, thirdParty, "Provides additional services")

' Layout and Positioning (example)
Lay_R(authoring, database)
Lay_R(storefront, database)
Lay_D(storefront, paymentProcessor)
Lay_D(storefront, printFulfillment)
Lay_D(storefront, thirdParty)
Lay_D(authors, authoring)
Lay_D(reviewers, authoring)
Lay_D(customers, storefront)
Lay_D(employees, management)

@enduml

Explanation of the Diagram:

  1. Containers within the System Boundary (cms):

    • Authoring and Review Module: Handles the creation and management of content by authors and the review process by reviewers.
    • Customer Storefront Module: Provides the interface for customers to browse, purchase, and access books.
    • Publisher Management Module: Used by publisher employees to manage content, sales, and customer engagement.
    • Central Database: A relational database that stores all essential data such as content, user information, transactions, and review comments.

  2. External Containers:

    • Payment Processor: External service for handling payment transactions.
    • Print Fulfillment Service: External service for managing the printing and shipping of physical books.
    • Third-Party Services: External services providing additional functionalities like analytics and notifications.

  3. Actors and Relationships:

    • Authors: Interact with the Authoring and Review Module to create and manage content.
    • Reviewers: Use the Authoring and Review Module to provide feedback.
    • Customers: Engage with the Customer Storefront Module to purchase and access books.
    • Publisher Employees: Use the Publisher Management Module to manage content and customer relations.

  4. Internal Relationships:

    • Authoring Module and Database: Stores and retrieves content data.
    • Storefront Module and Database: Reads product data and records transactions.
    • Management Module and Database: Manages content and user data.

  5. External System Interactions:

    • The Storefront Module communicates with the Payment Processor for handling payments.
    • It interacts with the Print Fulfillment Service for physical book orders.
    • The Third-Party Services provide additional functionalities to the Storefront Module.

  6. Layout Directives:

    • These are optional and help organize the elements in the diagram. In this context, they position the containers relative to each other for clarity.

Visualizing the Diagram:

To visualize this diagram:

  1. Using Visual Studio Code: Ensure you have the PlantUML extension installed and configured with Java and Graphviz.
  2. Online Tools: Copy and paste the above code into an online PlantUML editor like PlantText or PlantUML Editor.

This diagram offers a clear view of the major containers within the Unified Platform and their interactions, providing insight into the system’s architecture at a container level.

You:

create a plantuml software component diagram using C4 notation of the above container diagram

ChatGPT:

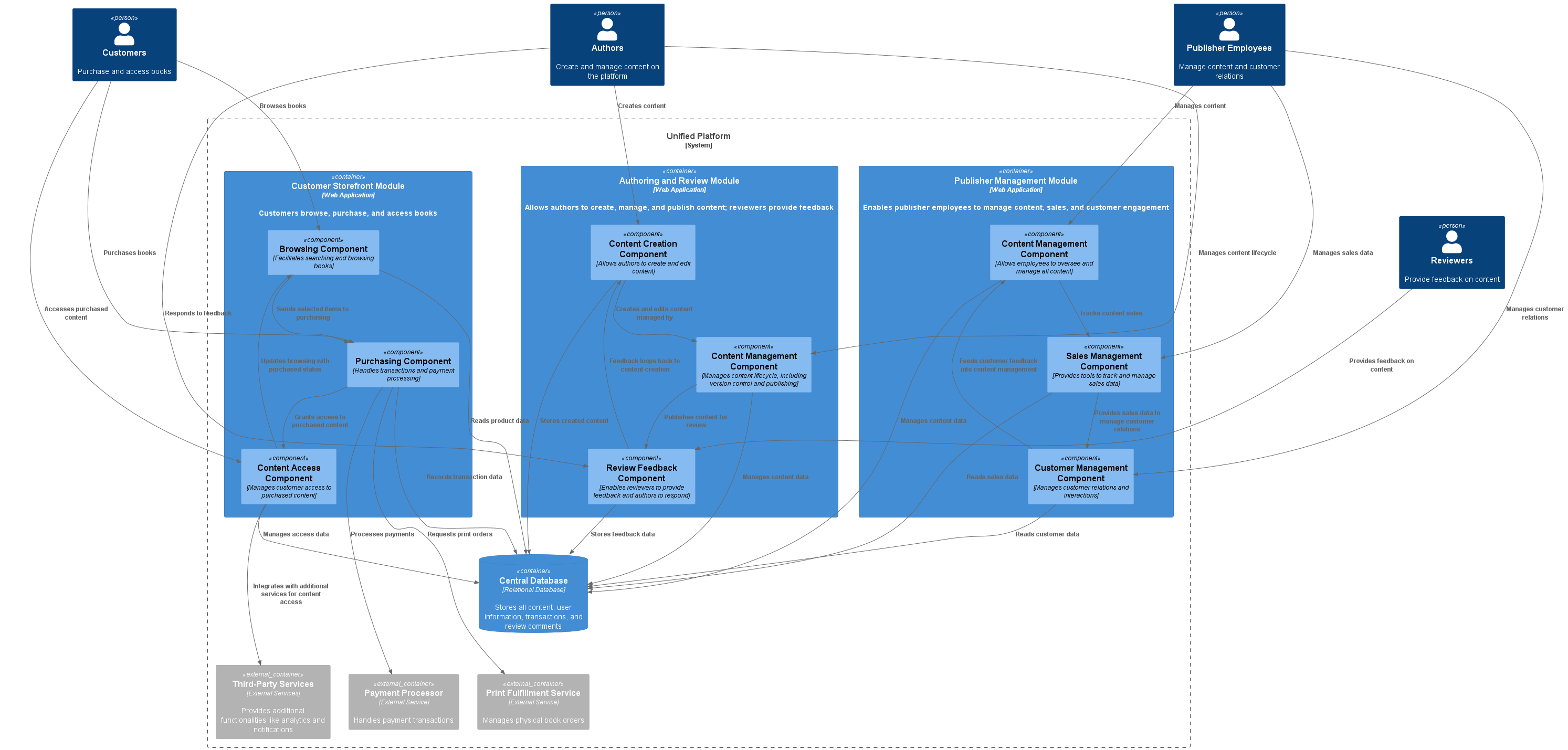

To create a C4 Software Component Diagram in PlantUML for the Unified Platform described above, we will break down each major container (Authoring and Review Module, Customer Storefront Module, and Publisher Management Module) into its key components and show how these components interact with each other and external systems.

Software Component Diagram (C4 Level 3)

The Software Component Diagram focuses on the individual components within each container and their interactions. We’ll detail the main functional components for each module and how they collaborate.

Here’s the PlantUML code for the component diagram:

context diagram

@startuml
!define C4Component
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml

' Define the System Boundary
System_Boundary(cms, "Unified Platform") {

    ' Authoring and Review Module
    Container(authoring, "Authoring and Review Module", "Web Application", "Allows authors to create, manage, and publish content; reviewers provide feedback") {
        Component(authCreation, "Content Creation Component", "Allows authors to create and edit content")
        Component(authManagement, "Content Management Component", "Manages content lifecycle, including version control and publishing")
        Component(reviewFeedback, "Review Feedback Component", "Enables reviewers to provide feedback and authors to respond")
    }

    ' Customer Storefront Module
    Container(storefront, "Customer Storefront Module", "Web Application", "Customers browse, purchase, and access books") {
        Component(storeBrowsing, "Browsing Component", "Facilitates searching and browsing books")
        Component(storePurchasing, "Purchasing Component", "Handles transactions and payment processing")
        Component(storeAccess, "Content Access Component", "Manages customer access to purchased content")
    }

    ' Publisher Management Module
    Container(management, "Publisher Management Module", "Web Application", "Enables publisher employees to manage content, sales, and customer engagement") {
        Component(mgmtContent, "Content Management Component", "Allows employees to oversee and manage all content")
        Component(mgmtSales, "Sales Management Component", "Provides tools to track and manage sales data")
        Component(mgmtCustomer, "Customer Management Component", "Manages customer relations and interactions")
    }

    ' Central Database
    ContainerDb(database, "Central Database", "Relational Database", "Stores all content, user information, transactions, and review comments")

    ' External Services
    Container_Ext(paymentProcessor, "Payment Processor", "External Service", "Handles payment transactions")
    Container_Ext(printFulfillment, "Print Fulfillment Service", "External Service", "Manages physical book orders")
    Container_Ext(thirdParty, "Third-Party Services", "External Services", "Provides additional functionalities like analytics and notifications")

}

' Define People
Person(authors, "Authors", "Create and manage content on the platform")
Person(reviewers, "Reviewers", "Provide feedback on content")
Person(customers, "Customers", "Purchase and access books")
Person(employees, "Publisher Employees", "Manage content and customer relations")

' Define Relationships with People
Rel(authors, authCreation, "Creates content")
Rel(authors, authManagement, "Manages content lifecycle")
Rel(reviewers, reviewFeedback, "Provides feedback on content")
Rel(authors, reviewFeedback, "Responds to feedback")

Rel(customers, storeBrowsing, "Browses books")
Rel(customers, storePurchasing, "Purchases books")
Rel(customers, storeAccess, "Accesses purchased content")
Rel(employees, mgmtContent, "Manages content")
Rel(employees, mgmtSales, "Manages sales data")
Rel(employees, mgmtCustomer, "Manages customer relations")

' Internal Relationships within Authoring and Review Module
Rel(authCreation, authManagement, "Creates and edits content managed by")
Rel(authManagement, reviewFeedback, "Publishes content for review")
Rel(reviewFeedback, authCreation, "Feedback loops back to content creation")

' Internal Relationships within Customer Storefront Module
Rel(storeBrowsing, storePurchasing, "Sends selected items to purchasing")
Rel(storePurchasing, storeAccess, "Grants access to purchased content")
Rel(storeAccess, storeBrowsing, "Updates browsing with purchased status")

' Internal Relationships within Publisher Management Module
Rel(mgmtContent, mgmtSales, "Tracks content sales")
Rel(mgmtSales, mgmtCustomer, "Provides sales data to manage customer relations")
Rel(mgmtCustomer, mgmtContent, "Feeds customer feedback into content management")

' Database Relationships
Rel(authCreation, database, "Stores created content")
Rel(authManagement, database, "Manages content data")
Rel(reviewFeedback, database, "Stores feedback data")
Rel(storeBrowsing, database, "Reads product data")
Rel(storePurchasing, database, "Records transaction data")
Rel(storeAccess, database, "Manages access data")
Rel(mgmtContent, database, "Manages content data")
Rel(mgmtSales, database, "Reads sales data")
Rel(mgmtCustomer, database, "Reads customer data")

' External System Interactions
Rel(storePurchasing, paymentProcessor, "Processes payments")
Rel(storePurchasing, printFulfillment, "Requests print orders")
Rel(storeAccess, thirdParty, "Integrates with additional services for content access")

' Layout and Positioning (optional)
Lay_R(authors, authoring)
Lay_R(reviewers, authoring)
Lay_D(customers, storefront)
Lay_R(employees, management)
Lay_D(database, paymentProcessor)
Lay_D(database, printFulfillment)
Lay_D(database, thirdParty)

@enduml

Explanation of the Diagram:

  1. Containers within the System Boundary (cms):

    • Authoring and Review Module: Contains components for content creation, management, and review feedback.
    • Customer Storefront Module: Contains components for browsing, purchasing, and accessing books.
    • Publisher Management Module: Contains components for managing content, sales, and customer relations.
    • Central Database: Stores all critical data shared across modules.

  2. Components:

    • Content Creation Component: Used by authors to create and edit content.
    • Content Management Component: Manages the lifecycle of content, including publishing and version control.
    • Review Feedback Component: Handles the review process and feedback from reviewers.
    • Browsing Component: Allows customers to search and browse available books.
    • Purchasing Component: Manages transactions and integrates with payment processing.
    • Content Access Component: Controls customer access to purchased content.
    • Content Management Component (Mgmt): Used by employees to oversee and manage content.
    • Sales Management Component: Tracks and manages sales data.
    • Customer Management Component: Manages customer interactions and relations.

  3. External Services:

    • Payment Processor: Processes customer payments.
    • Print Fulfillment Service: Manages orders for physical books.
    • Third-Party Services: Provides additional functionalities, such as analytics and notifications.

  4. Actors and Relationships:

    • Shows how each user interacts with specific components.
    • Highlights internal interactions between components within each module.
    • Illustrates how components interact with the central database and external systems.

Visualizing the Diagram:

To visualize this diagram:

  1. Using Visual Studio Code: Ensure you have the PlantUML extension installed and configured with Java and Graphviz.
  2. Online Tools: Copy and paste the above code into an online PlantUML editor like PlantText or PlantUML Editor.

This component diagram provides a detailed view of the individual components within each container of the Unified Platform and how they interact, offering a deeper understanding of the system’s architecture at a component level.

You:

create a plantuml software class diagram of the above component diagram

ChatGPT:

To create a PlantUML software class diagram based on the component diagram for the Unified Platform, we will detail the main classes within each component and their relationships. We’ll focus on key classes that represent the functionalities of the components in the Authoring and Review Module, Customer Storefront Module, and Publisher Management Module.

Software Class Diagram

This diagram will illustrate the internal structure of each component by showing its classes, attributes, methods, and their interactions.

Here’s the PlantUML code to represent this class diagram:

context diagram

@startuml
!define C4Component
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml

' Define the Authoring and Review Module Classes
package "Authoring and Review Module" {
    class Content {
        +id: String
        +title: String
        +body: String
        +status: String
        +createdDate: Date
        +publishedDate: Date
        +version: int
        --
        +create(): void
        +edit(): void
        +publish(): void
        +getVersionHistory(): List<Content>
    }

    class Author {
        +id: String
        +name: String
        +email: String
        --
        +createContent(content: Content): void
        +manageContent(content: Content): void
        +respondToReview(content: Content, review: Review): void
    }

    class Review {
        +id: String
        +contentId: String
        +reviewerId: String
        +comments: String
        +status: String
        +reviewDate: Date
        --
        +addComment(comment: String): void
        +submitReview(): void
    }

    class Reviewer {
        +id: String
        +name: String
        +email: String
        --
        +provideFeedback(content: Content): Review
    }

    Content "1" -- "1..*" Review : generates
    Author "1" -- "1..*" Content : creates and manages
    Reviewer "1" -- "1..*" Review : provides
    Review "1..*" -- "1" Content : reviews
}

' Define the Customer Storefront Module Classes
package "Customer Storefront Module" {
    class Product {
        +id: String
        +title: String
        +description: String
        +price: double
        +format: String
        +availability: String
        --
        +browse(): List<Product>
        +purchase(customer: Customer): Order
        +getDetails(): Product
    }

    class Customer {
        +id: String
        +name: String
        +email: String
        +paymentMethod: String
        --
        +browseProducts(): List<Product>
        +makePurchase(product: Product): Order
        +accessPurchasedContent(order: Order): void
    }

    class Order {
        +orderId: String
        +productId: String
        +customerId: String
        +orderDate: Date
        +status: String
        --
        +processPayment(): void
        +fulfillOrder(): void
    }

    class PaymentProcessor {
        +processPayment(order: Order): void
    }

    class PrintFulfillment {
        +fulfillPrintOrder(order: Order): void
    }

    Product "1" -- "0..*" Order : generates
    Customer "1" -- "0..*" Order : places
    Order "1" -- "1" PaymentProcessor : processes
    Order "1" -- "1" PrintFulfillment : fulfills
}

' Define the Publisher Management Module Classes
package "Publisher Management Module" {
    class Employee {
        +id: String
        +name: String
        +role: String
        --
        +manageContent(content: Content): void
        +trackSales(salesData: SalesData): void
        +handleCustomerQueries(customer: Customer): void
    }

    class SalesData {
        +salesId: String
        +productId: String
        +quantitySold: int
        +revenue: double
        +saleDate: Date
        --
        +getSalesReport(): List<SalesData>
    }

    class CustomerQuery {
        +queryId: String
        +customerId: String
        +issue: String
        +status: String
        +response: String
        +queryDate: Date
        --
        +respondToQuery(response: String): void
    }

    class Customer {
        +id: String
        +name: String
        +email: String
        --
        +submitQuery(query: CustomerQuery): void
    }

    Employee "1" -- "1..*" Content : manages
    Employee "1" -- "1..*" SalesData : tracks
    Employee "1" -- "1..*" CustomerQuery : handles
    CustomerQuery "1..*" -- "1" Customer : submitted by
    SalesData "1" -- "1" Product : reports on
}

' Relationships between modules and the database
package "Central Database" {
    class Database {
        +save(entity: Any): void
        +update(entity: Any): void
        +delete(entity: Any): void
        +findById(id: String): Any
    }

    Database "1" -- "1..*" Content : stores
    Database "1" -- "1..*" Review : stores
    Database "1" -- "1..*" Product : stores
    Database "1" -- "1..*" Order : stores
    Database "1" -- "1..*" Customer : stores
    Database "1" -- "1..*" SalesData : stores
    Database "1" -- "1..*" CustomerQuery : stores
}

@enduml

Explanation of the Diagram:

  1. Classes in Authoring and Review Module:

    • Content: Represents individual pieces of content created by authors. It includes methods for creating, editing, and publishing content.
    • Author: Represents an author who creates and manages content. They interact with content and reviews.
    • Review: Represents feedback provided on content. It includes methods for adding comments and submitting reviews.
    • Reviewer: Represents a person who provides feedback on content.

  2. Classes in Customer Storefront Module:

    • Product: Represents a book or item available for purchase. It includes methods for browsing, purchasing, and accessing details.
    • Customer: Represents a customer who browses and purchases products. They can also access purchased content.
    • Order: Represents an order placed by a customer. It includes methods for processing payments and fulfilling orders.
    • PaymentProcessor: Handles payment transactions for orders.
    • PrintFulfillment: Manages the fulfillment of physical book orders.

  3. Classes in Publisher Management Module:

    • Employee: Represents a publisher employee managing content, tracking sales, and handling customer queries.
    • SalesData: Represents sales information for products. It includes methods for generating sales reports.
    • CustomerQuery: Represents a customer query or issue. It includes methods for responding to queries.
    • Customer: Represents a customer interacting with the system through queries.

  4. Central Database:

    • Database: Represents the central storage for all entities in the system. It includes generic methods for saving, updating, deleting, and finding entities.

  5. Relationships:

    • Relationships between classes show how they interact. For example, the Content class is managed by the Author class and reviewed by the Review class.
    • Cross-container relationships, such as between Order and PaymentProcessor, show interactions across different modules.

Visualizing the Diagram:

To visualize this diagram:

  1. Using Visual Studio Code: Ensure you have the PlantUML extension installed and configured with Java and Graphviz.
  2. Online Tools: Copy and paste the above code into an online PlantUML editor like PlantText or PlantUML Editor.

This class diagram provides a detailed view of the internal structure and interactions of classes within the components of the Unified Platform, helping to understand the system at a granular level.

You:

create a java implementation of the above class diagram including unit tests

ChatGPT:

To implement the classes from the provided UML diagram in Java and include unit tests, I’ll follow these steps:

  1. Define the classes and their relationships as per the UML diagram.
  2. Implement the core functionalities for each class.
  3. Create unit tests for the key functionalities using JUnit.

Java Implementation

We’ll create the classes for each module as specified in the diagram. Below are the Java implementations for the classes, with essential methods and attributes:

Authoring and Review Module

Content.java

import java.util.Date;
import java.util.List;
import java.util.ArrayList;

public class Content {
    private String id;
    private String title;
    private String body;
    private String status;
    private Date createdDate;
    private Date publishedDate;
    private int version;
    private List<Review> reviews = new ArrayList<>();

    public Content(String id, String title, String body) {
        this.id = id;
        this.title = title;
        this.body = body;
        this.status = "Draft";
        this.createdDate = new Date();
        this.version = 1;
    }

    public void create() {
        // Implementation for creating content
    }

    public void edit(String newBody) {
        this.body = newBody;
        this.version++;
    }

    public void publish() {
        this.status = "Published";
        this.publishedDate = new Date();
    }

    public List<Content> getVersionHistory() {
        // Return version history (simplified for demonstration)
        return List.of(this);
    }

    public void addReview(Review review) {
        reviews.add(review);
    }

    // Getters and Setters (omitted for brevity)
}

Author.java

public class Author {
    private String id;
    private String name;
    private String email;

    public Author(String id, String name, String email) {
        this.id = id;
        this.name = name;
        this.email = email;
    }

    public void createContent(Content content) {
        content.create();
    }

    public void manageContent(Content content) {
        // Implementation for managing content
    }

    public void respondToReview(Content content, Review review) {
        // Implementation for responding to review
    }

    // Getters and Setters (omitted for brevity)
}

Review.java

import java.util.Date;

public class Review {
    private String id;
    private String contentId;
    private String reviewerId;
    private String comments;
    private String status;
    private Date reviewDate;

    public Review(String id, String contentId, String reviewerId, String comments) {
        this.id = id;
        this.contentId = contentId;
        this.reviewerId = reviewerId;
        this.comments = comments;
        this.status = "Pending";
        this.reviewDate = new Date();
    }

    public void addComment(String comment) {
        this.comments += "\n" + comment;
    }

    public void submitReview() {
        this.status = "Reviewed";
    }

    // Getters and Setters (omitted for brevity)
}

Reviewer.java

public class Reviewer {
    private String id;
    private String name;
    private String email;

    public Reviewer(String id, String name, String email) {
        this.id = id;
        this.name = name;
        this.email = email;
    }

    public Review provideFeedback(Content content) {
        // Simplified for demonstration purposes
        return new Review("R1", content.getId(), this.id, "Initial feedback");
    }

    // Getters and Setters (omitted for brevity)
}

Customer Storefront Module

Product.java

import java.util.List;
import java.util.ArrayList;

public class Product {
    private String id;
    private String title;
    private String description;
    private double price;
    private String format;
    private String availability;

    public Product(String id, String title, String description, double price, String format, String availability) {
        this.id = id;
        this.title = title;
        this.description = description;
        this.price = price;
        this.format = format;
        this.availability = availability;
    }

    public List<Product> browse() {
        // Implementation for browsing products
        return new ArrayList<>();
    }

    public Order purchase(Customer customer) {
        // Implementation for purchasing product
        return new Order("O1", this.id, customer.getId());
    }

    public Product getDetails() {
        // Return product details
        return this;
    }

    // Getters and Setters (omitted for brevity)
}

Customer.java

public class Customer {
    private String id;
    private String name;
    private String email;
    private String paymentMethod;

    public Customer(String id, String name, String email, String paymentMethod) {
        this.id = id;
        this.name = name;
        this.email = email;
        this.paymentMethod = paymentMethod;
    }

    public List<Product> browseProducts() {
        // Implementation for browsing products
        return new ArrayList<>();
    }

    public Order makePurchase(Product product) {
        // Implementation for making a purchase
        return new Order("O2", product.getId(), this.id);
    }

    public void accessPurchasedContent(Order order) {
        // Implementation for accessing purchased content
    }

    // Getters and Setters (omitted for brevity)
}

Order.java

import java.util.Date;

public class Order {
    private String orderId;
    private String productId;
    private String customerId;
    private Date orderDate;
    private String status;

    public Order(String orderId, String productId, String customerId) {
        this.orderId = orderId;
        this.productId = productId;
        this.customerId = customerId;
        this.orderDate = new Date();
        this.status = "Processing";
    }

    public void processPayment() {
        // Implementation for payment processing
    }

    public void fulfillOrder() {
        this.status = "Fulfilled";
    }

    // Getters and Setters (omitted for brevity)
}

PaymentProcessor.java

public class PaymentProcessor {
    public void processPayment(Order order) {
        // Implementation for processing payment
        order.processPayment();
    }
}

PrintFulfillment.java

public class PrintFulfillment {
    public void fulfillPrintOrder(Order order) {
        // Implementation for fulfilling print order
        order.fulfillOrder();
    }
}

Publisher Management Module

Employee.java

public class Employee {
    private String id;
    private String name;
    private String role;

    public Employee(String id, String name, String role) {
        this.id = id;
        this.name = name;
        this.role = role;
    }

    public void manageContent(Content content) {
        // Implementation for managing content
    }

    public void trackSales(SalesData salesData) {
        // Implementation for tracking sales data
    }

    public void handleCustomerQueries(CustomerQuery query) {
        // Implementation for handling customer queries
    }

    // Getters and Setters (omitted for brevity)
}

SalesData.java

import java.util.Date;

public class SalesData {
    private String salesId;
    private String productId;
    private int quantitySold;
    private double revenue;
    private Date saleDate;

    public SalesData(String salesId, String productId, int quantitySold, double revenue, Date saleDate) {
        this.salesId = salesId;
        this.productId = productId;
        this.quantitySold = quantitySold;
        this.revenue = revenue;
        this.saleDate = saleDate;
    }

    public static List<SalesData> getSalesReport() {
        // Simplified implementation for generating sales report
        return new ArrayList<>();
    }

    // Getters and Setters (omitted for brevity)
}

CustomerQuery.java

import java.util.Date;

public class CustomerQuery {
    private String queryId;
    private String customerId;
    private String issue;
    private String status;
    private String response;
    private Date queryDate;

    public CustomerQuery(String queryId, String customerId, String issue) {
        this.queryId = queryId;
        this.customerId = customerId;
        this.issue = issue;
        this.status = "Open";
        this.queryDate = new Date();
    }

    public void respondToQuery(String response) {
        this.response = response;
        this.status = "Resolved";
    }

    // Getters and Setters (omitted for brevity)
}

Customer.java (Reused from Customer Storefront Module)

// Customer class is reused in Publisher Management Module
public class Customer {
    private String id;
    private String name;
    private String email;

    public Customer(String id, String name, String email) {
        this.id = id;
        this.name = name;
        this.email = email;
    }

    public void submitQuery(CustomerQuery query) {
        // Implementation for submitting a query
    }

    // Getters and Setters (omitted for brevity)
}

Central Database

Database.java

import java.util.HashMap;
import java.util.Map;

public class Database {
    private Map<String, Object> storage = new HashMap<>();

    public void save(String id, Object entity) {
        storage.put(id, entity);
    }

    public void update(String id, Object entity) {
        storage.put(id, entity);
    }

    public void delete(String id) {
        storage.remove(id);
    }

    public Object findById(String id) {
        return storage.get(id);
    }
}

Unit Tests

We will use JUnit to write unit tests for some key functionalities.

ContentTest.java

import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;

import java.util.Date;

public class ContentTest {

    @Test
    public void testContentCreation() {
        Content content = new Content("C1", "Title", "Body");
        assertEquals("C1", content.getId());
        assertEquals("Draft", content.getStatus());
    }

    @Test
    public void testContentEdit() {
        Content content = new Content("C1", "Title", "Body");
        content.edit("New Body");
        assertEquals("New Body", content.getBody());
        assertEquals(2, content.getVersion());
    }

    @Test
    public void testContentPublish() {
        Content content = new Content("C1", "Title", "Body");
        content.publish();
        assertEquals("Published", content.getStatus());
        assertNotNull(content.getPublishedDate());
    }

    @Test
    public void testAddReview() {
        Content content = new Content("C1", "Title", "Body");
        Review review = new Review("R1", content.getId(), "Reviewer1", "Good content");
        content.addReview(review);
        assertTrue(content.getVersionHistory().contains(content));
    }
}

ProductTest.java

import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;

public class ProductTest {

    @Test
    public void testProductCreation() {
        Product product = new Product("P1", "Book Title", "Book Description", 29.99, "eBook", "Available");
        assertEquals("P1", product.getId());
        assertEquals("Book Title", product.getTitle());
        assertEquals(29.99, product.getPrice());
    }

    @Test
    public void testPurchase() {
        Product product = new Product("P1", "Book Title", "Book Description", 29.99, "eBook", "Available");
        Customer customer = new Customer("C1", "John Doe", "[email protected]", "Credit Card");
        Order order = product.purchase(customer);
        assertNotNull(order);
        assertEquals("P1", order.getProductId());
        assertEquals("C1", order.getCustomerId());
    }
}

OrderTest.java

import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;

public class OrderTest {

    @Test
    public void testOrderProcessing() {
        Order order = new Order("O1", "P1", "C1");
        order.processPayment();
        assertEquals("Processing", order.getStatus());
    }

    @Test
    public void testOrderFulfillment() {
        Order order = new Order("O1", "P1", "C1");
        order.fulfillOrder();
        assertEquals("Fulfilled", order.getStatus());
    }
}

SalesDataTest.java

import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;
import java.util.Date;

public class SalesDataTest {

    @Test
    public void testSalesDataCreation() {
        SalesData salesData = new SalesData("S1", "P1", 100, 2999.00, new Date());
        assertEquals("S1", salesData.getSalesId());
        assertEquals(100, salesData.getQuantitySold());
        assertEquals(2999.00, salesData.getRevenue());
    }

    @Test
    public void testSalesReport() {
        SalesData salesData = new SalesData("S1", "P1", 100, 2999.00, new Date());
        assertNotNull(SalesData.getSalesReport());
    }
}

Setting Up the Project

  1. Project Structure:

    • Create a directory structure as follows:

      src/
  main/
    java/
      AuthoringReviewModule/
      CustomerStorefrontModule/
      PublisherManagementModule/
      Database/
  test/
    java/
      AuthoringReviewModule/
      CustomerStorefrontModule/
      PublisherManagementModule/
      Database/

  2. Dependencies:

    • Add JUnit to your pom.xml if you’re using Maven, or include the JUnit library in your project dependencies if you’re using a different build tool.

  3. Run Tests:

    • Use your IDE or build tool to run the JUnit tests and ensure everything is functioning as expected.

This setup provides a basic implementation and testing framework based on the class diagram. You can further expand the functionalities and tests as needed for a more comprehensive solution.

You:

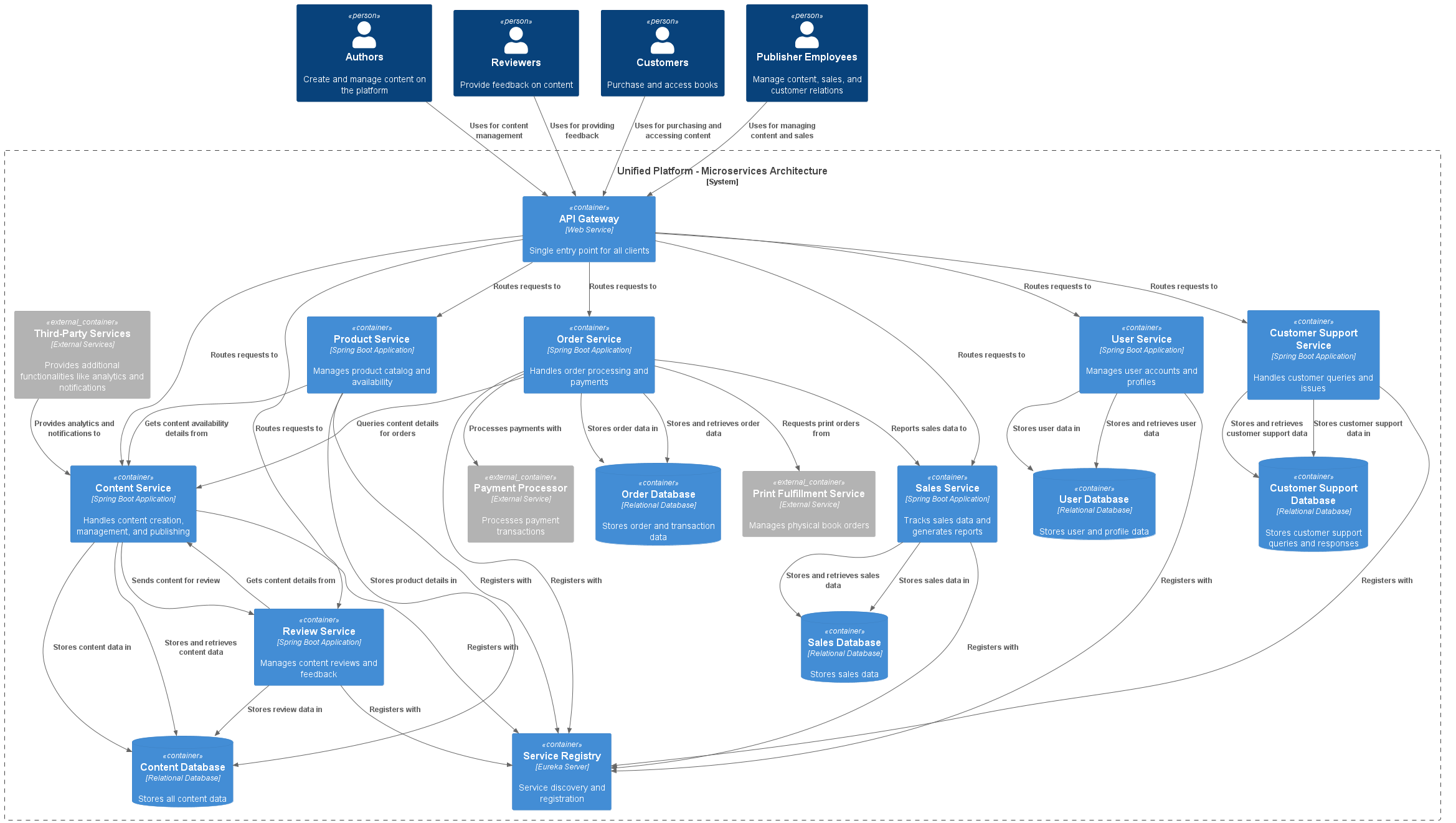

create the container diagram of the above requirement in plantuml taking into account the microservice architecture design patterns

ChatGPT:

To create a container diagram for the Unified Platform considering microservice architecture design patterns using PlantUML, we’ll break down the system into independent, deployable microservices. Each microservice will be responsible for a specific aspect of the platform’s functionality. This approach aligns with common microservice design patterns such as Single Responsibility, API Gateway, and Service Registry.

Microservice Design Patterns for Unified Platform

  1. Single Responsibility: Each microservice will handle a specific aspect of the system (e.g., content management, user management, order processing).
  2. API Gateway: Provides a single entry point for all external clients (authors, reviewers, customers, employees).
  3. Service Registry and Discovery: Allows services to register themselves and discover other services.

PlantUML Container Diagram with Microservices

Here’s how we can define the container diagram for the Unified Platform:

context diagram

@startuml
!define C4Container
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

' Define the System Boundary
System_Boundary(cms, "Unified Platform - Microservices Architecture") {

    ' API Gateway
    Container(apiGateway, "API Gateway", "Web Service", "Single entry point for all clients")

    ' Microservices
    Container(contentService, "Content Service", "Spring Boot Application", "Handles content creation, management, and publishing")
    Container(reviewService, "Review Service", "Spring Boot Application", "Manages content reviews and feedback")
    Container(productService, "Product Service", "Spring Boot Application", "Manages product catalog and availability")
    Container(orderService, "Order Service", "Spring Boot Application", "Handles order processing and payments")
    Container(userService, "User Service", "Spring Boot Application", "Manages user accounts and profiles")
    Container(salesService, "Sales Service", "Spring Boot Application", "Tracks sales data and generates reports")
    Container(customerSupportService, "Customer Support Service", "Spring Boot Application", "Handles customer queries and issues")

    ' External Systems
    Container_Ext(paymentProcessor, "Payment Processor", "External Service", "Processes payment transactions")
    Container_Ext(printFulfillment, "Print Fulfillment Service", "External Service", "Manages physical book orders")
    Container_Ext(thirdParty, "Third-Party Services", "External Services", "Provides additional functionalities like analytics and notifications")

    ' Service Registry
    Container(serviceRegistry, "Service Registry", "Eureka Server", "Service discovery and registration")

    ' Central Database
    ContainerDb(contentDatabase, "Content Database", "Relational Database", "Stores all content data")
    ContainerDb(orderDatabase, "Order Database", "Relational Database", "Stores order and transaction data")
    ContainerDb(userDatabase, "User Database", "Relational Database", "Stores user and profile data")
    ContainerDb(salesDatabase, "Sales Database", "Relational Database", "Stores sales data")
    ContainerDb(customerSupportDatabase, "Customer Support Database", "Relational Database", "Stores customer support queries and responses")

}

' Define People
Person(authors, "Authors", "Create and manage content on the platform")
Person(reviewers, "Reviewers", "Provide feedback on content")
Person(customers, "Customers", "Purchase and access books")
Person(employees, "Publisher Employees", "Manage content, sales, and customer relations")

' Relationships with API Gateway
Rel(authors, apiGateway, "Uses for content management")
Rel(reviewers, apiGateway, "Uses for providing feedback")
Rel(customers, apiGateway, "Uses for purchasing and accessing content")
Rel(employees, apiGateway, "Uses for managing content and sales")

' Internal Relationships between Microservices through API Gateway
Rel(apiGateway, contentService, "Routes requests to")
Rel(apiGateway, reviewService, "Routes requests to")
Rel(apiGateway, productService, "Routes requests to")
Rel(apiGateway, orderService, "Routes requests to")
Rel(apiGateway, userService, "Routes requests to")
Rel(apiGateway, salesService, "Routes requests to")
Rel(apiGateway, customerSupportService, "Routes requests to")

' Service-to-Service Interactions
Rel(contentService, reviewService, "Sends content for review")
Rel(orderService, paymentProcessor, "Processes payments with")
Rel(orderService, printFulfillment, "Requests print orders from")
Rel(orderService, contentService, "Queries content details for orders")
Rel(contentService, contentDatabase, "Stores content data in")
Rel(reviewService, contentService, "Gets content details from")
Rel(reviewService, contentDatabase, "Stores review data in")
Rel(productService, contentService, "Gets content availability details from")
Rel(productService, contentDatabase, "Stores product details in")
Rel(userService, userDatabase, "Stores user data in")
Rel(orderService, orderDatabase, "Stores order data in")
Rel(orderService, salesService, "Reports sales data to")
Rel(salesService, salesDatabase, "Stores sales data in")
Rel(customerSupportService, customerSupportDatabase, "Stores customer support data in")
Rel(thirdParty, contentService, "Provides analytics and notifications to")

' Service Registry Relationships
Rel(contentService, serviceRegistry, "Registers with")
Rel(reviewService, serviceRegistry, "Registers with")
Rel(productService, serviceRegistry, "Registers with")
Rel(orderService, serviceRegistry, "Registers with")
Rel(userService, serviceRegistry, "Registers with")
Rel(salesService, serviceRegistry, "Registers with")
Rel(customerSupportService, serviceRegistry, "Registers with")

' Database Relationships
Rel(contentService, contentDatabase, "Stores and retrieves content data")
Rel(orderService, orderDatabase, "Stores and retrieves order data")
Rel(userService, userDatabase, "Stores and retrieves user data")
Rel(salesService, salesDatabase, "Stores and retrieves sales data")
Rel(customerSupportService, customerSupportDatabase, "Stores and retrieves customer support data")

@enduml

Explanation of the Diagram:

  1. API Gateway:

    • Acts as a single entry point for all external clients (authors, reviewers, customers, and employees).
    • Routes incoming requests to the appropriate microservices.

  2. Microservices:

    • Content Service: Manages the creation, editing, and publishing of content.
    • Review Service: Handles the submission and management of content reviews and feedback.
    • Product Service: Manages the product catalog, including availability and details.
    • Order Service: Processes customer orders and payments, handles print fulfillment.
    • User Service: Manages user accounts, profiles, and authentication.
    • Sales Service: Tracks sales data and generates sales reports.
    • Customer Support Service: Handles customer queries and issues, provides support.

  3. External Systems:

    • Payment Processor: Processes payment transactions for orders.
    • Print Fulfillment Service: Manages the printing and shipping of physical books.
    • Third-Party Services: Provides additional functionalities like analytics and notifications.

  4. Service Registry:

    • Eureka Server: Enables service discovery and registration, allowing microservices to find and communicate with each other dynamically.

  5. Databases:

    • Each microservice interacts with its own database, adhering to the Database per Service pattern.
    • Content Database: Stores content data.
    • Order Database: Stores order and transaction data.
    • User Database: Stores user information and profiles.
    • Sales Database: Stores sales data.
    • Customer Support Database: Stores customer support queries and responses.

  6. Relationships:

    • Defined interactions between the API Gateway and the microservices.
    • Service-to-service communications are kept minimal to maintain loose coupling.
    • Direct interactions between services and their respective databases.
    • Registrations with the Service Registry to enable dynamic service discovery.

Visualizing the Diagram:

To visualize this diagram:

  1. Using Visual Studio Code: Ensure you have the PlantUML extension installed and configured with Java and Graphviz.
  2. Online Tools: Copy and paste the above code into an online PlantUML editor like PlantText or PlantUML Editor.

This container diagram provides a clear view of how the system’s functionality is distributed across different microservices and how they interact, emphasizing the benefits of a microservices architecture.
